2023 Kawasaki KX250

Call for Price
Overview
With more Supercross and Motocross championships than any other manufacturer, the KX name is synonymous with winning. The KX250 motorcycle is the championship-proven machine built so you can ‘Be Next'. Be the next champion. Be the next hero. Be the next legend. Be the next trailblazer for an entire generation of greatness. On the KX250, your time is now.

FEATURING

  • UPDATED, MORE POWERFUL 249cc 4-STROKE ENGINE
  • ELECTRIC START
  • REVISED CONED DISC-SPRING HYDRAULIC CLUTCH
  • RACE-READY SUSPENSION WITH UPDATED SETTINGS

ADDITIONAL VEHICLE FEATURES

  • NEW increased engine performance across the rev-range
  • NEW racer friendly gearing
  • Finger-follower valve actuation
  • Dual injectors
  • Factory-style Launch Control Mode
  • Setting-adjustable motocross ECU
  • Slim aluminum perimeter frame
  • NEW wider rear tire
  • Slim, ergonomic bodywork
  • ERGO-FIT adjustable handlebar and footpeg positions
  • Factory-style Renthal Fatbar
  • NEW wider footpeg design

Specifications
Model
KX
Year
2023
Sale Type
New
Manufacturer
Kawasaki
Color
LIME GREEN
top features

FACTORY-STYLE ENGINE COMPONENTS AND TUNING2023 Kawasaki KX250

The KX250’s engine has long been one if its greatest strengths. Finger-follower valve actuation, dual injectors, downdraft-style intake, and other race-inspired performance features are complemented by electric start and a hydraulic clutch. Further engine updates for 2023 deliver stronger performance across the rev-range, translating to quicker lap times and better holeshot performance.

FACTORY-STYLE CHASSIS COMPONENTS AND TUNING 2023 Kawasaki KX250

The KX250’s lightweight aluminum frame and factory-inspired suspension and brake components were all designed to realise its light, agile handling. Slim, ergonomic bodywork that facilitates rider movement and control further helps riders turn quick lap times. New tires and revised suspension settings for 2023 offer improved handling when cornering, making the KX250 an even more potent track weapon.



technology

Engine Management Technology

DUAL INJECTORS

The Kawasaki KX250F was the first mass-production motocross bike to feature Dual Injectors. One injector is located downstream of the throttle valve, where injectors are located on standard FI systems, and a second is located upstream of the throttle valve, close to the airbox. The two injectors split their roles: operating at different rpm ranges, they ensure both smooth, instant response at low-rpm and high peak power at high-rpm. For cases that call for low-rpm operation like instantaneous acceleration off the start and precise control when cornering, primary operation falls to the downstream injector. Because it is positioned close to the combustion chamber, sprayed fuel can be supplied to the engine quickly, resulting in sharp response. Conversely, when high power is the priority, primary operation switches to the upstream injector, which focuses on high-rpm applications. Its location farther away from the combustion chamber means that the fuel has a longer travel time. This allows more time for the fuel particles and air to mix, as well as allowing the mixture to cool and condense. This means that when more power is needed, the cylinder can be filled with a greater quantity of high-quality mixture.

LAUNCH CONTROL MODE

In motocross racing, getting a good start is critical. A few tenths of a second can make the difference between getting the holeshot or not. In slippery conditions, getting the maximum drive from a motocrosser requires precise control of the both the clutch and throttle.

Launch Control Mode helps riders get a good start by complementing high-level technique with engine management. Featured on a mass-production motocrosser for the first time on the Kawasaki KX450F, the system activates a separate engine map designed to get a more efficient start off the line. The system is designed to the same specifications as that used by our factory racers competing in the AMA Supercross and Motocross championships.

Launch Control Mode is activated simply by pressing the button on the handlebar. The Launch Control map slightly retards ignition timing to help tame the engine's strong torque and reduce wheel spin off the start. Launch Control Mode is only active in the first two gears after the launch, disengaging and returning to the standard engine map automatically once the rider shifts into third gear. The system gives riders a great advantage when lining up at the gate and puts them in a better position to win.

Chassis Management Technology

ERGO-FIT

Proper fit is key for rider comfort and control. However, the ideal fit varies from rider to rider, depending on their physical dimensions and riding style.

ERGO-FIT is an interface system designed to allow riders to find their ideal riding position. Various points of the chassis interface (the handlebar, footpegs and seat, etc.) can be adjusted through a combination of interchangeable parts and parts with adjustable positions. This enables a wide range of riders to find a riding position that offers both comfort and control. Feeling at one with their machine, they will be able to experience how Kawasaki machines are fun and rewarding to ride.

power
Clutch
Wet multi-disc, manual
Engine
249cc, liquid-cooled, 4-stroke, DOHC 4-valve single
Ignition
Digital DC-CDI
Starting
Electric
Final Drive
Chain
Fuel System
Fuel injection: ø44 mm x 1, with dual injectors
Lubrication
Forced lubrication, semi-dry sump
Transmission
5-speed, return
Bore X Stroke
78.0 x 52.2 mm
Compression Ratio
14.1:1
capability
Frame
Perimeter, aluminum
Rear Tire
110/90-19 62M

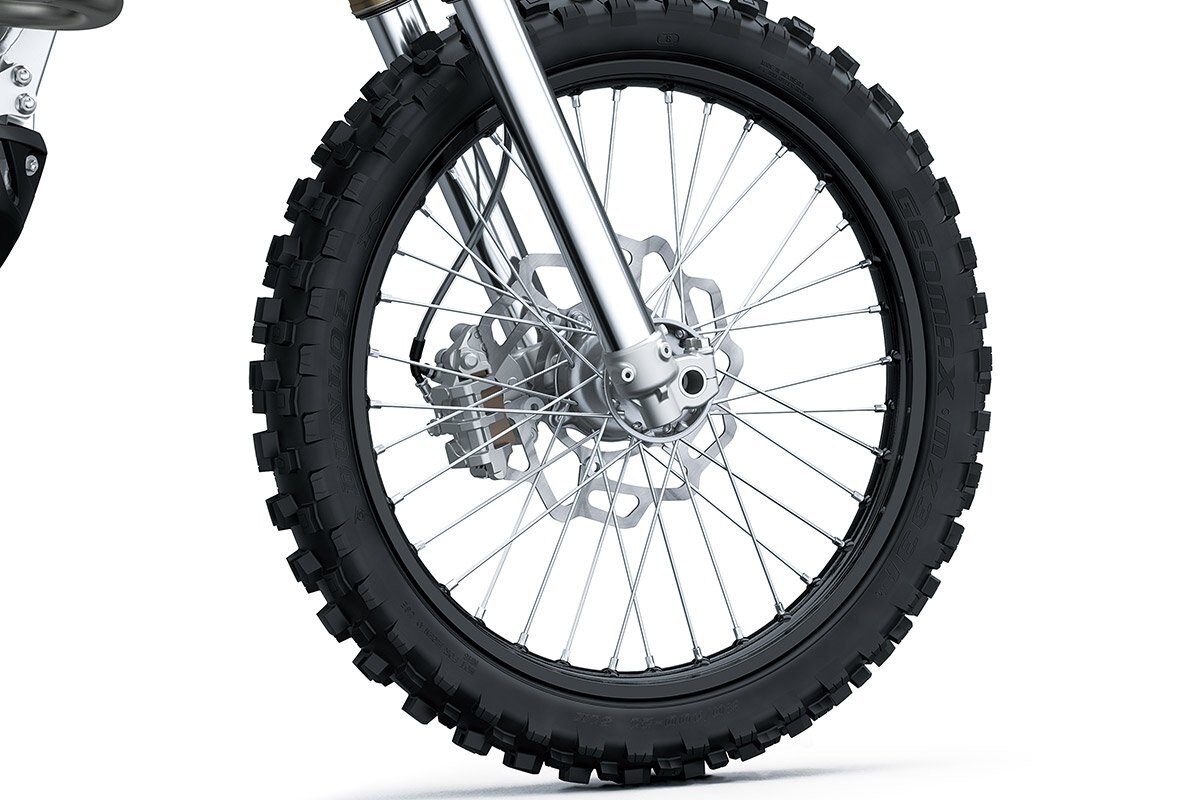

Front Tire
80/100-21 51M
Rear Brake
ø240 mm petal disc with single-piston caliper
Front Brake
Semi-floating ø270 mm petal disc with dual-piston caliper
Rake / Trail
27.1° / 118 mm
Steering Angle (L/R)
42° / 42°
Rear Suspension / Wheel Travel
New Uni Trak with adjustable dual-range (high/low-speed) compression damping, adjustable rebound damping and adjustable spring preload / 316 mm (12.4 in)
Front Suspension / Wheel Travel
ø48 mm inverted fork with adjustable compression and rebound damping / 314 mm (12.4 in)
details
Wheelbase
1,485 mm (58.5 in)
Curb Mass**
107.8 kg (238 lb)
Seat Height
960 mm (37.8 in)
Fuel Capacity
6.2 litres
Road Clearance
345 mm (13.6 in)
Mass Without Fuel
103.2 kg (228 lb)
Dimensions (L X W X H)
2,190 x 820 x 1,270 mm (86.2x 32.3 x 50.0 in)
